GE Wind Turbine Portfolio: Onshore and Offshore Technology
General Electric (GE) has established itself as a global leader in wind energy, deploying over 40,000 turbines worldwide as of 2022. The company's portfolio spans a wide range of capacities, from early onshore models developed in collaboration with the U.S. Department of Energy to massive offshore installations designed to harness the high-velocity winds of the open ocean.
Key Facts
- Global Reach: Over 40,000 turbines installed globally by 2022.
- Strategic Acquisitions: GE expanded its product line by acquiring Alstom and Ecotecnia turbines in 2015.
- Technological Range: Power ratings range from 1.5 MW onshore units to 14 MW Haliade-X offshore giants.
- Offshore Innovation: The Haliade-X series features rotor diameters of 220 meters and was certified for typhoons in 2021.
GE Onshore Wind Technology

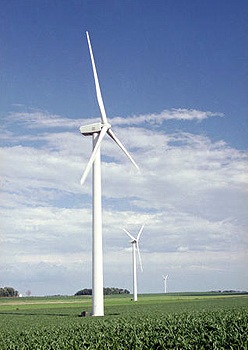

The foundation of GE's onshore platform began with the 1.5-megawatt series. These turbines utilize three fiberglass blades attached to a horizontal axis hub. This hub connects to a main shaft that drives a multi-stage gear system, which increases the rotational rate to send kinetic energy to a doubly-fed electric machine (a generator that allows for variable speed operation) where it is converted into electricity.
To maximize efficiency and safety, the turbines employ an active, all-electric pitch and yaw system to control blade angle and turbine direction. The gearbox and generator are housed within a nacelle (the enclosure atop the tower), which is insulated to reduce noise pollution.
These systems are designed for seamless grid integration, offering features such as voltage regulation, low-voltage ride-through, and the ability to deliver reactive power during grid disturbances or low-wind periods. The impact of the 1.5 MW series was significant; at one point, its 10,000 U.S. installations represented 50% of the national commercial wind energy fleet, leading the National Renewable Energy Laboratory (NREL) to install a unit at the National Wind Technology Center in 2009.
Evolution continued with the 2.5XL model, which introduced a permanent magnet generator to convert output directly to AC at mains frequency, before the platform returned to the doubly-fed generator and rotor converter design used in the 1.5 series.
GE Offshore Wind Technology
GE's venture into offshore wind began early, with the 3.6 SL model installed at Ireland's Arklow Bank Wind Park in 2003. While the development of a 4.1 MW turbine was cancelled in the early 2010s—with only one unit erected in Goteborg, Sweden—the company later pivoted toward larger, more powerful designs.
Following the acquisition of Alstom and Ecotecnia, GE launched the 6-megawatt Haliade offshore turbine in 2016. Produced at the St. Nazaire factory in France, this model utilizes a permanent magnet design and underwent extensive testing at the Østerild Wind Turbine Test Field.
The pinnacle of this evolution is the Haliade-X. This platform has scaled up to 12, 13, and 14 MW variants, featuring a massive 220-meter rotor diameter. A prototype in Rotterdam helped the Haliade-X achieve typhoon certification in 2021, and GE has since partnered with Hyundai to establish a Haliade-X factory in South Korea.
Technical Specifications Summary
| Product Name | Power Rating (MW) | Rotor Diameter (m) | Hub Height (m) | IEC Wind Class |
|---|---|---|---|---|
| ECO 110 | 3.0 | 110 | 75, 90, 100 | - |
| GE 1.5xle | 1.5 | 82.5 | 59 | - |
| GE 2.x-120 | 2.5 – 2.75 | 120 | 85, 110, 120, 139 | IIIs, DiBT WZII |
| GE 3.x-137 | 3.2 – 3.8 | 137 | 110 – 164 | III |
| GE 4.8-158 | 4.8 | 158 | 101, 120.9, 149, 161 | - |
| Haliade-X | 12 – 14 | 220 | Up to 150 | Ib |
Frequently Asked Questions
What is the maximum power rating of the Haliade-X offshore turbine?
The Haliade-X series reaches a maximum power rating of 14 MW.
How did GE acquire the Ecotecnia turbine line?
GE acquired the Ecotecnia turbines through its acquisition of Alstom in 2015.
What is the purpose of the nacelle in a GE wind turbine?
The nacelle is the housing that contains the generator and gearbox, and it is insulated to minimize noise emissions.
Which GE onshore turbine was highly influential in the US commercial fleet?
The 1.5-megawatt series was highly influential, constituting 50% of the US national commercial wind energy fleet at the time of its 10,000th installation.
What special certification does the Haliade-X possess?
The Haliade-X was certified for typhoons in 2021, following tests with a prototype in Rotterdam.
