Boat Lift Systems and Waterway Level Transitions
Navigating waterways often requires moving vessels between different elevations. While conventional locks are the most common method for managing these changes, engineers have developed a variety of specialized constructions to lift or lower boats more efficiently or in challenging terrains.
Key Facts
- Boat lifts and inclined planes serve as alternatives to conventional locks.
- These systems are designed specifically to move vessels between two different levels of a waterway.
- Common types include boat lifts, canal inclined planes, portage railways, and water slopes.
Types of Boat Lifting Constructions
Depending on the height difference and the volume of water available, different mechanical and structural solutions are employed to transport boats across varying elevations.

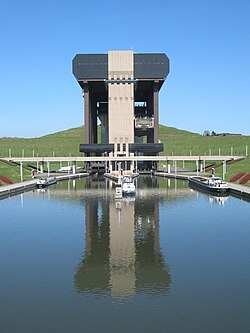

Boat Lifts
A boat lift is a mechanical device that raises and lowers boats between two water levels, often using a caisson (a watertight chamber) to move the vessel vertically.
Canal Inclined Planes
A canal inclined plane uses a slope to move boats from one level to another. Unlike a vertical lift, the vessel is typically placed in a carriage or tank that slides up or down a rail system.
Portage Railways
Portage railways are specialized rail systems used to transport boats over land between two separate bodies of water or different sections of a canal.
Water Slopes
A water slope is a unique construction that allows boats to move across an inclined plane of water, utilizing a series of gates to maintain water levels while the vessel ascends or descends.
Comparison of Waterway Transition Methods
| System Type | Primary Mechanism | Movement Direction |
|---|---|---|
| Boat Lift | Mechanical Caisson | Vertical |
| Inclined Plane | Rail-based Carriage | Diagonal |
| Portage Railway | Land-based Rail | Terrestrial/Horizontal |
| Water Slope | Inclined Waterway | Diagonal |
Frequently Asked Questions
What is the primary purpose of a boat lift?
The primary purpose of a boat lift is to move vessels between two different levels of a waterway without the use of conventional locks.
How does a canal inclined plane differ from a boat lift?
While a boat lift typically moves a vessel vertically, a canal inclined plane moves the boat along a diagonal slope using a carriage or tank.
What is a portage railway?
A portage railway is a system of rails used to transport boats over land to connect two different water levels or separate waterways.
Are conventional locks included in these lifting constructions?
No, these specialized constructions—such as water slopes and inclined planes—are distinct from and exclude conventional locks.
What is a water slope?
A water slope is a construction that allows a boat to travel across an inclined plane of water, moving between different elevations.
